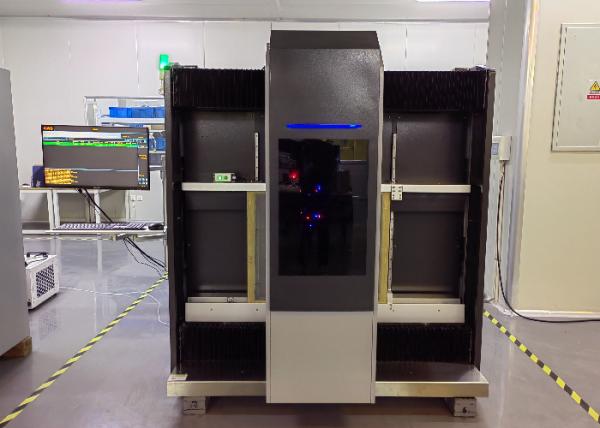

Product Description:
CTS Computer To Screen is a direct to-screen imaging system that
provides excellent quality of 2540 dpi and up to 133LPI raster. It
is a Direct Laser Image & Exposure machine that is widely used for
textile, decal, label, decoration, packaging and PCB applications.
It is capable of producing high-resolution images and enables fast
and accurate screen making. The equipment net weight is 1450 kg and
the size is 2000x1157.5x2247 mm/ 78.7x45.6x88.5. It requires a
yellow light room with cleanliness, temperature of 22±2°C, and
40-70% relative humidity (no condensation) for optimal performance.
CTS Computer To Screen is a reliable and cost-effective solution
for screen making.
Features:
- Product Name: CTS Computer To Screen
- Power: Single Phase 110V/ 220V, 50/60HZ, 4KW, Compressor Air 0.5mpa
- Max screen size ( mm ): 1200(Height)x1300(length)
- File format: 1_bit Tiff Etc.
- Min screen size ( mm ): 400x250mm/ 15.8x9.8
- Imaging System: DMD DLP Technology
- CTS: direct to-screen imaging system
Technical Parameters:
| Parameter | Details |
|---|
| Screen frame thickness | 20-50mm (bespoke Service Is Available) |
| Imaging System | DMD DLP Technology |
| Laser power | 20W/25W(Optional) |
| File format | 1_bit Tiff Etc. |
| Resolution | 1270dpi/2540dpi(Optional) |
| Exposure time | 120-240s/㎡, #350 Yellow Mesh |
| Power | Single Phase 110V/ 220V, 50/60HZ, 4KW, Compressor Air 0.5mpa |
| Application | Textile, Decal, Label, Decoration, Packaging And PCB Etc. |
| Raster | Up To 133LPI |
| Conditions | Yellow Light Room With Cleanliness, Temperature 22±2°C, 40-70%
Relative Humidity (No Condensation) |
Applications:
CTS Computer To Screen, a brand of GIS, is a direct to-screen
imaging system with model number CTS1213V, which is made in Suzhou,
China. It features a raster up to 133LPI, resolution of 1270dpi or
optional 2540dpi, power of single phase 110V/220V, 50/60HZ, 4KW and
compressor air of 0.5mpa. It is widely applied in textile, decal,
label, decoration, packaging and PCB etc. with exposure time of
120-240s/㎡ and #350 yellow mesh. Moreover, it is equipped with
advanced UV laser and provides better resolution up to 2540dpi.
Customization:
CTS Computer To Screen
Brand Name: GIS
Model Number: CTS1213V
Place of Origin: Suzhou, China
Conditions: Yellow Light Room With Cleanliness, Temperature 22±2°C,
40-70% Relative Humidity (No Condensation)
Power: Single Phase 110V/ 220V, 50/60HZ, 4KW, Compressor Air 0.5mpa
Equipment size (mm): 2000x1157.5x2247mm/ 78.7x45.6x88.5
Focus system: Dynamic Focusing
Max screen size ( mm ): 1200(Height)x1300(length)
UV Laser: High Resolution, 2540 dpi
Support and Services:
CTS Computer To Screen (CTS) provides technical support and
services to ensure that your CTS system runs smoothly and
efficiently.
We offer both in-person and remote technical support and services
to our customers, including installation, setup, troubleshooting,
maintenance, and repair. Our team of experienced technicians is
available 24/7 to help you with any issue you may have with your
CTS system.
We also provide dedicated technical support for software upgrades,
to ensure that your CTS system is running the latest version and is
up-to-date. Our software updates are designed to improve the
performance and reliability of your CTS system.
We also offer training and educational services to our customers,
to help them get the most out of their CTS system. Our training and
educational services include online tutorials, webinars, and
hands-on instruction.
If you have any questions about our technical support and services,
please do not hesitate to contact us.
Packing and Shipping:
CTS Computer To Screen Packaging and Shipping
CTS products will be shipped in protective packaging. The packing
material used is approved and certified for the products shipped.
For small items, the products will be bubble-wrapped and placed in
a box. For larger items, the products will be shipped in a
corrugated cardboard box. The packages will be properly labeled and
marked with the correct address.
We will use the most reliable and cost-effective shipping method
for each order. We have partnered with leading global carriers to
provide the best shipping options available.
FAQ:
- Q: What is CTS Computer To Screen?
A: CTS Computer To Screen (GIS CTS1213V) is a product manufactured
by GIS in Suzhou, China. It is a direct-to-screen imaging system
that produces high-quality images for screen printing using digital
artwork. - Q: What are the advantages of using CTS Computer To Screen?
A: CTS Computer To Screen offers a number of advantages compared to
traditional methods of screen printing including higher accuracy
and resolution, faster production times, and more consistent
results. - Q: What kind of artwork is required for CTS Computer To Screen?
A: CTS Computer To Screen requires vector-based artwork in order to
produce the highest quality images. Vector-based artwork is
composed of objects, lines, and curves instead of pixels. - Q: What is the process for using CTS Computer To Screen?
A: To use CTS Computer To Screen, first the artwork must be
prepared and converted into a vector format. Once the artwork is
ready, it is loaded onto the CTS computer and the image is exposed
directly onto the screen. Finally, the screen is ready for
printing. - Q: What kind of printing can be done with CTS Computer To Screen?
A: CTS Computer To Screen can be used to print on a variety of
materials including textiles, plastics, and metal. The system can
be used to produce complex designs with multiple colors and fine
details.
