2540DPI High Resolution Computer To Screen Machine DMD DLP Technology

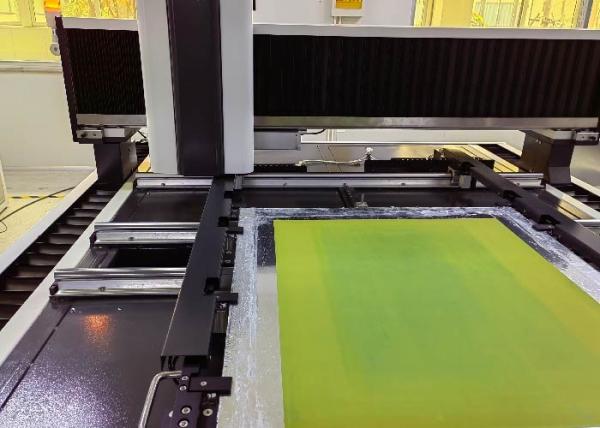

The CTS laser direct imaging machine uses TI's DMD digital imaging technology to form a clear and sharp direct network point image on the silk screen through laser projection. In this way, the digital graphics in the computer can be imaged on the screen. This system has become
the process of making screen images before silk screen printing.

CTS images are superior to traditional film positives, providing more detail and smoother halftone transitions. Dimensional accuracy, the error is less than one ten thousandth. All images do not require expensive film, nor do they require the space and labor required to store and retrieve them. Because the image information is digitized, it is easy to store and quickly retrieve.

CTS temperature control adaptive technology, save energy costs, reduce screen exposure time and speed up production. It only takes 3 minutes to expose each square meter of the screen, with precise alignment and less labor.

GIS has passed ATL (TDK)/TDK qualified suppliers ISO 9001, OHSAS 18001, CE, China, the United States, Europe, South Korea, Japan, and more than 170 patents.

GIS Tech Inc.

GIS built an equipment manufacturing base in Feng County, Xuzhou, covering an area of ​​20,000 square meters, and built a digital projection lithography technology application manufacturing base in Rudong, Nantong, including 2,000 square meters of clean workshops. Has passed ISO 9001, OHSAS 18001 and other certifications, and is a cooperative supplier of internationally renowned companies such as ATL and TDK. Jointly develop nanoscale anti-electromagnetic inkjet equipment with the world's top 500 companies.

• Specification / Model	CTS100
  Max screen size ( mm )	900x1000
  Min screen size ( mm )	400x400
  Max exposure size ( mm )	850x950
  Screen frame thickness (bespoke service is available)	25-45mm
  Imaging System	DMD DLP Technology
  Emulsion thickness (EOM)	Solvent resistant emulsion 3μm-150μm, water resistant emulsion 3μm- 350μm
  Exposure time	120-240s/ ㎡, #350 yellow mesh
  Resolution	2540dpi (Optional)
  Raster	133LPI
  Focus system	Fixed focusing
  File format	1_bit tiff etc.
  Laser type	UV laser, wavelength 405±5nm
  Laser power	20W/25W(Optional)
  Equipment size (mm)	2700*1550*1600mm
  Equipment net weight	1200KG
  Conditions	Yellow light room with cleanliness Class 10000, temperature 22±2°C, 40-70% relative humidity (No condensation)
  Power	Single phase 220v, 50/60HZ, 4KW, gas 1L/min

Jiangsu GIS Laser Technologies Inc. (hereafter referred to as GIS Laser) is a subsidiary of GIS Tech Inc. which is a multinational company providing advanced intelligent solutions into the industries of New Energy, Semiconductor Packaging, Lithium Battery, PCB and Printing, with its incredible innovation. through its independent Next Tech Research Institute, Business Division and Manufacturing Plant.

Our mission is to be a professional supplier in product solutions and services, striving for sustainable optimization and innovation in manufacturing capabilities for customers.

Our values are following with innovation, humility, perseverance, commitment.

GIS Tech has a strong professional R&D and after sales team with over 30 years experiences to enable the annual production output to be over 500 units, based on its professional manufacturing management SOP process through 10,000 square meter manufacturing center in Xuzhou city, Jiangsu province.

GIS Tech is the pioneer in introducing the DLP Technology into the laser imaging applications, owning the whole independent intellectual properties in the technologies of data processing, data transmission, sub-graph, electronic control, board card control, laser and optical lens etc. Our main products are CTS series (Computer to Screen system), CTP (Computer to Plate system) and fully automatic printing plate developing system.

GIS Tech is prepared to meet with new challenges in funding, technology, teams, applications, services, supply chains in the new future.
