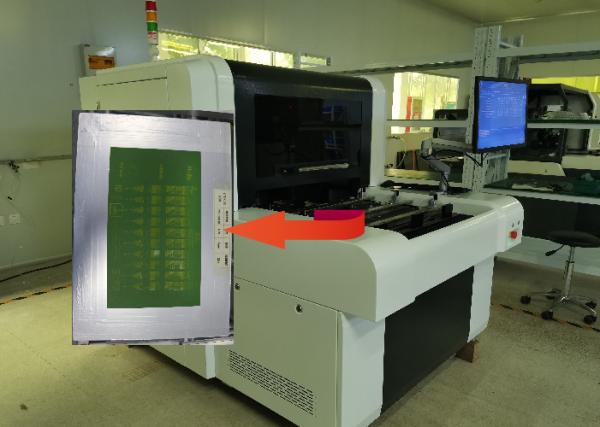

Direct To Screen Printer For Textile Printing 1720dpi

Max Screen Size 900*1000 Computer To Screen machine

Data files is directly read by the computer to screen (CTS) and then converted into images which will be transmitted through laser beams onto screens by DMD and lens.

The laser direct exposure machine introduces digital optical processing (DLP) technology into the field of screen imaging, using DLP laser direct imaging technology to replace the traditional film or mask exposure mode, and is equipped with HIWINSP-level guide rails and linear motor Renishaw gratings. Marble base, etc., to ensure the stability of the machine.

• Specification / Model	CTS100
  Max screen size ( mm )	900x1000
  Min screen size ( mm )	400x400
  Max exposure size ( mm )	800x900
  Screen frame thickness (bespoke service is available)	25-45mm
  Imaging System	DMD DLP Technology
  Emulsion thickness (EOM)	Solvent resistant emulsion 3μm-150μm, water resistant emulsion 3μm- 220μm
  Exposure time	120-240s/ ㎡, #350 yellow mesh
  Resolution	1270/2540dpi (Optional)
  Raster	133LPI
  Focus system	Fixed focusing
  File format	1_bit tiff etc.
  Laser type	UV laser, wavelength 405±5nm
  Laser power	20W/25W(Optional)
  Equipment size (mm)	1550x1330x1460
  Equipment net weight	1100KG
  Conditions	Yellow light room with cleanliness Class 10000, temperature 22±2°C, 40-70% relative humidity (No condensation)
  Power	Single phase 220v, 50/60HZ, 4KW(CTS200,CTS300), gas 1L/min




Jiangsu GIS Laser Technologies Inc. (hereafter referred to as GIS Laser) is a subsidiary of GIS Tech Inc. which is a multinational company providing advanced intelligent solutions into the industries of New Energy, Semiconductor Packaging, Lithium Battery, PCB and Printing, with its incredible innovation. through its independent Next Tech Research Institute, Business Division and Manufacturing Plant.

Our mission is to be a professional supplier in product solutions and services, striving for sustainable optimization and innovation in manufacturing capabilities for customers.

Our values are following with innovation, humility, perseverance, commitment.

GIS Tech has a strong professional R&D and after sales team with over 30 years experiences to enable the annual production output to be over 500 units, based on its professional manufacturing management SOP process through 10,000 square meter manufacturing center in Xuzhou city, Jiangsu province.

GIS Tech is the pioneer in introducing the DLP Technology into the laser imaging applications, owning the whole independent intellectual properties in the technologies of data processing, data transmission, sub-graph, electronic control, board card control, laser and optical lens etc. Our main products are CTS series (Computer to Screen system), CTP (Computer to Plate system) and fully automatic printing plate developing system.
