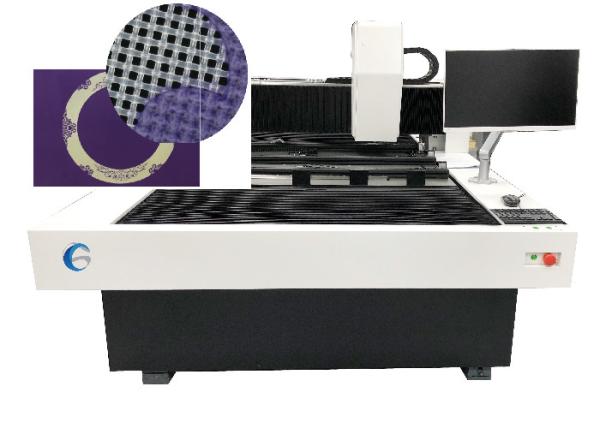

Max Screen Size 1000*1100 Computer To Screen CTS For Textile Laser Direct Exposure Machine For Decal

Computer to screen (CTS) imaging & exposure system. CTS greatly reduces the time and effort required to prepare images for screen printing. The screen in the screen frame has been pictured with a water-oil dual-use photosensitive emulsion. When it passes through the exposure machine, the advanced DMD digital imaging technology makes it form sharp square dots with clear definition, thereby quickly generating opaque images. After the exposure is completed, the stencil can be washed, and the digital image can be clearly displayed on the screen.

GIS Tech Inc.

GIS Tech Inc.has established a manufacturing and R&D base in Fengxian County, Xuzhou, covering an area of 20,000 square meters, including 1000 square meters of clean workshops. It has R&D and after-sales centers in Suzhou, covering an area of 2,000 square meters, with a core teams of 30 R&D people, and it’s planned to be expanded to 60 people. The products cover optical, mechanical, electrical systems, software and sports systems. The technical force is strongly supported by a team of experts from Japan and Germany, with a technical team covering high-end talents such as optics, mechanics, electronics, software, etc., as well as complete production facilities and related equipment.

• Specification / Model	CTS200
  Max screen size ( mm )	1000x1100
  Min screen size ( mm )	400x400
  Max exposure size ( mm )	900x1000
  Screen frame thickness (bespoke service is available)	25-45mm
  Imaging System	DMD DLP Technology
  Emulsion thickness (EOM)	Solvent resistant emulsion 3μm-150μm, water resistant emulsion 3μm- 350μm
  Exposure time	120-240s/ ㎡, #350 yellow mesh
  Resolution	2540dpi (Optional)
  Raster	133LPI
  Focus system	Fixed focusing
  File format	1_bit tiff etc.
  Laser type	UV laser, wavelength 405±5nm
  Laser power	20W/25W(Optional)
  Equipment size (mm)	2700x1550x1600
  Equipment net weight	1100KG
  Conditions	Yellow light room with cleanliness Class 10000, temperature 22±2°C, 40-70% relative humidity (No condensation)
  Power	Single phase 220v, 50/60HZ, 4KW, gas 1L/min

High Precision:
Resolutions 2540dpi, with raster 133lpi/dpi (halftones printing)

High Efficiency:
3 minutes to finish the exposure on screen size 1000mm*1000mm. Stencil making efficieny has been greatly improved due to a lot of time is saved by the accurate exposure alignment and lobor reduction.

Low Cost:
Elimination of film positives. Litho film are becoming increasingly expensive and the number of suppliers on the maket is rapidly decreasing. 1 procedure of CTS digital screen making to replace 5 procedures of from the conventional process

Jiangsu GIS Laser Technologies Inc. (hereafter referred to as GIS Laser) is a subsidiary of GIS Tech Inc. which is a multinational company providing advanced intelligent solutions into the industries of New Energy, Semiconductor Packaging, Lithium Battery, PCB and Printing, with its incredible innovation. through its independent Next Tech Research Institute, Business Division and Manufacturing Plant.

Our mission is to be a professional supplier in product solutions and services, striving for sustainable optimization and innovation in manufacturing capabilities for customers.

Our values are following with innovation, humility, perseverance, commitment.

GIS Tech has a strong professional R&D and after sales team with over 30 years experiences to enable the annual production output to be over 500 units, based on its professional manufacturing management SOP process through 10,000 square meter manufacturing center in Xuzhou city, Jiangsu province.

GIS Tech is the pioneer in introducing the DLP Technology into the laser imaging applications, owning the whole independent intellectual properties in the technologies of data processing, data transmission, sub-graph, electronic control, board card control, laser and optical lens etc. Our main products are CTS series (Computer to Screen system), CTP (Computer to Plate system) and fully automatic printing plate developing system.

GIS Tech is prepared to meet with new challenges in funding, technology, teams, applications, services, supply chains in the new future.
